Level Meter

A level meter is a device used to measure and display the intensity or quantity of a signal, sound, or material. In audio, it shows sound levels in decibels to prevent distortion and balance recordings, while in industry, it monitors fluid or material levels in tanks and silos for process control.

Different types include sound level meters for noise monitoring, VU/PPM meters for audio signals, and ultrasonic or radar level meters for liquids and solids. They are essential in fields like broadcasting, manufacturing, and environmental monitoring to ensure accuracy, safety, and quality.

Radar Level Transmitter

Key Performance

  • Frequency: 80 GHz
  • Beam Angle: 3°
  • Accuracy: ±1 mm

Why Choose This Transmitter?

  • Non-Contact Measurement: Safe and maintenance-free.
  • Compatible with Agitator Tanks: Works seamlessly even in challenging mixing environments.
  • Handles Hazardous Media: Suitable for solvents, chemicals, and aggressive liquids.

Features

  • Budget-friendly yet highly precise.
  • Compact 2-wire design for easy installation.
  • Output Options: 4–20 mA with Bluetooth (Android & iOS).
  • Reliable performance up to 30 m depth.
  • HART 7.0 support for advanced communication.
  • Smart Display: Shows length, volume, mA, and % fill.
  • Easy keypad configuration – no special tools required.
  • Covers up to 120 m range.
  • Excels in non-linear tank applications.

Applications

  • Agitator Tanks – accurate measurement despite turbulence.
  • Hazardous Chemical Storage – safe, non-contact monitoring.
  • Industrial Solvents & Liquids – reliable even in harsh environments.

Benefits at a Glance

✅ High precision (±1 mm)
✅ Works with hazardous chemicals safely
✅ Bluetooth app for Android & iOS
✅ Reliable up to 120 m range
✅ Easy setup, compact & robust

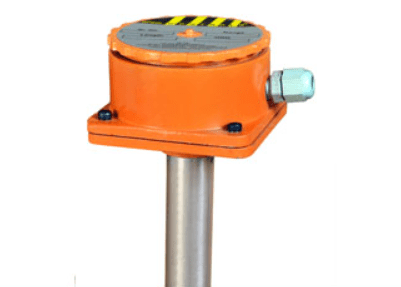

Capacitance Type Level Transmitter

A new generation, Capacitance based level transmitter for any type of liquids. Eltran is based on the physical properties of capacitor. The sensor selection is based on the type of liquid and can be measured from 100mm to 1500mm with rugged probe and above 1500 till 15000 flexible probe.

Technical Specification :

  • Measuring Range : 100 to 1500mm Rugged Probe / 1500 to 1500mm Flexible Probe.
  • Transmitter Type : Loop powered.
  • Supply Voltage : 12 To 24 V Dc.
  • Out Put : 4-20mA @ Constant Current Load of 500 Ω.
  • Pressure Rating : 6 Kg / cm2.
  • Temperature : -20 To 100℃.
  • Enclosure : Die cast alumimium duly approved flame proof abs duly approved for ip 65/67. Resulution: 2mm.
  • Accuracy : ± 0.25% FSR.

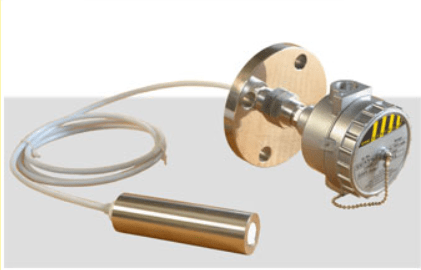

Fuel level transmitter

It is specially designed for diesel level measurement. It is the only transmitter in its class which measures minimum height as low as 65 mm with an accuracy of 0.5 mm this is directly mounted on any diesel generator fuel tank. This product is specially designed for mobile tower management system and has got proven track record at many locations.

Construction :
Consists of a sensing & ground concentric electrode with integral electronics enclosed in cast Aluminium enclosure. The probe is top mounted with threaded / flanged process connections. The capacitance formed between sensing & ground electrode is proportional to the change in liquid level, is sensed and converted to 4-20mA analogue output.

Technical Specifications:

  • ➩ Measuring Range : From 65 mm to 1000 mm
  • ➩ Transmitter Type : Loop Powered
  • ➩ Supply Voltage : 12 to 24 V DC
  • ➩ Out Put : 4-20ma @ Constant Current Load of 500 Ω RS-485 ( Optional )
  • ➩ Temperature : -20 to 100℃
  • ➩ Enclosure : Die-Cast Aluminum, Duly Approved for IP 65 / 67
  • ➩ Resolution : 1mm
  • ➩ Electrode Construction : Rigid Sensing with Concentric Ground Pipe
  • ➩ Cable Gland : Polyamide X PG 9

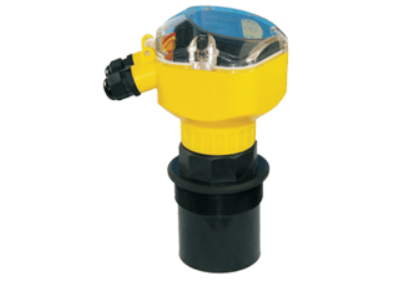

Ultrasonic Level Transmitter

Ultrasonic Level Transmitter (for material & liquid level measurement) is a non-contact reliable & cost-effective material level measuring instrument which is easily installed & maintenance free. It can meet most of the material level measurement requirements without touching the medium. It is a new generation ultrasonic level meter with fully independents property rights developed by the Spink Controls.

  • ➩ Radar Like Performance at an affordable price
  • ➩ Automatic adaption to virtually all environments
  • ➩ World smallest ultrasonic Open Channel Flow gauge
  • ➩ Superior reliability and accuracy under extremely harsh conditions

Float Operated Level Transmitter

Float Level Transmitters are ideal for continuous Level monitoring in Water, Diesel, Chemical and Oils for accurate level Measurement. The Output is not affected by liquid type, temperature, Pressure and other physical parameters. The Transmitter is factory calibrated and is ready to use.

Construction :
Float Level Transmitter consists of non magnetic sealed stem containing series of reed switches and resistor, Float carrying magnet, Mounting adaptor (or flange) and enclosure containing electronics.
Consider our Float Level Transmitters for all your continuous liquidlevel monitoring needs like Water, Diesel, Lube oils, Fuels, Chemicals and Petrochemical liquids.

Technical Specifications:

  • ➩ Overall Length : 300 mm to 5000mm
  • ➩ Measuring Error : ±0.25 % or Span
  • ➩ Output Temperature : ±0.007% / ℃
  • ➩ Resolution : 5mm / 10mm
  • ➩ Ambient Temperature : -40℃ to 60 ℃
  • ➩ Liquid Temp. Range : -40℃ to 120 ℃
  • ➩ Liquid Min. Density : 0.8 gm/cc
  • ➩ Max. Pressure : 10 kg/cm2
  • ➩ Protection category : Weather proof IP66 to IS 2147 (or) Flame Proof Gr. IIA & IIB to IS : 2148
  • ➩ Terminals : Max. 1.5mm2 Flexible
  • ➩ Cable Entry : PG11 for weather Proof ¾ Et for Flame proof (Glands not supplied)
  • ➩ Output : 2 wire, 4-20 mA 3 wire, 0-10 V DC RS 485
  • ➩ Process Connection : Threaded Flanged Tri Clamp others
  • ➩ Excitation Voltage: 10-30 V DC
  • ➩ Loop Resistance: Max.1200Ω
